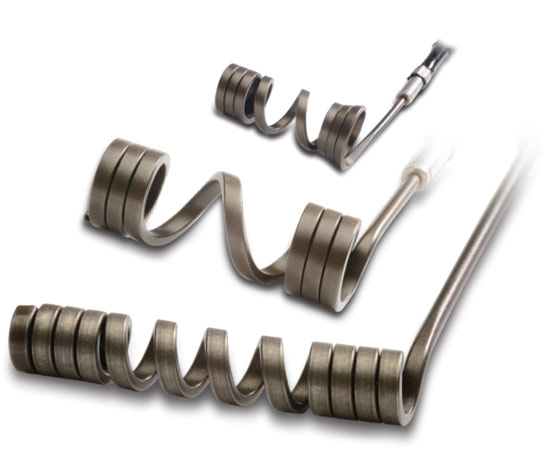

- Sheath material: SS
- Standard sizes available with various cross section
- Various Watt Density options available
- Designed for even heat profile
- Precision fit on Hot Runner Nozzles
- Highly Non-corrosive
- with J Type Thermocouple (ungrounded)
Applications
Hot Runner Nozzles & Bushings l Tube Extrusion l Pipe Forming
- Sheath Temperature: 7500C Max
- Voltage Range: 24 to 250 volts
- Standard Wattage: 250W, 330W, 400W, 470W, 550W, 650W, 750W, 850W, 1000W, 1100W
- Connection Wires: 1000 mm Stranded Nickel wires with PTFE coating
- Available Cross Sections (in mm):
Round: 2.9, 3.3, 3.8
Square: 3 x 3, 3.3 x 3.3
Flat: 1.8 x 3.2, 2.5 x 4.3, 4 x 6.4- Tolerance on all dimensions ± 0.1mm

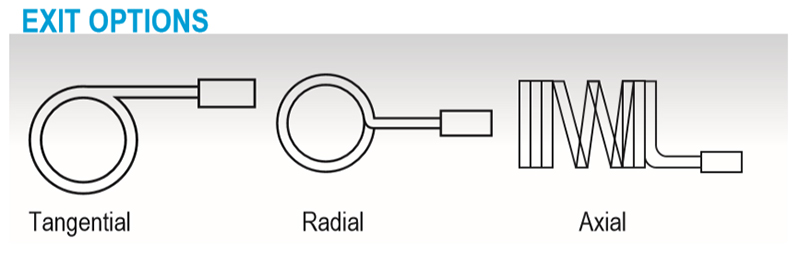

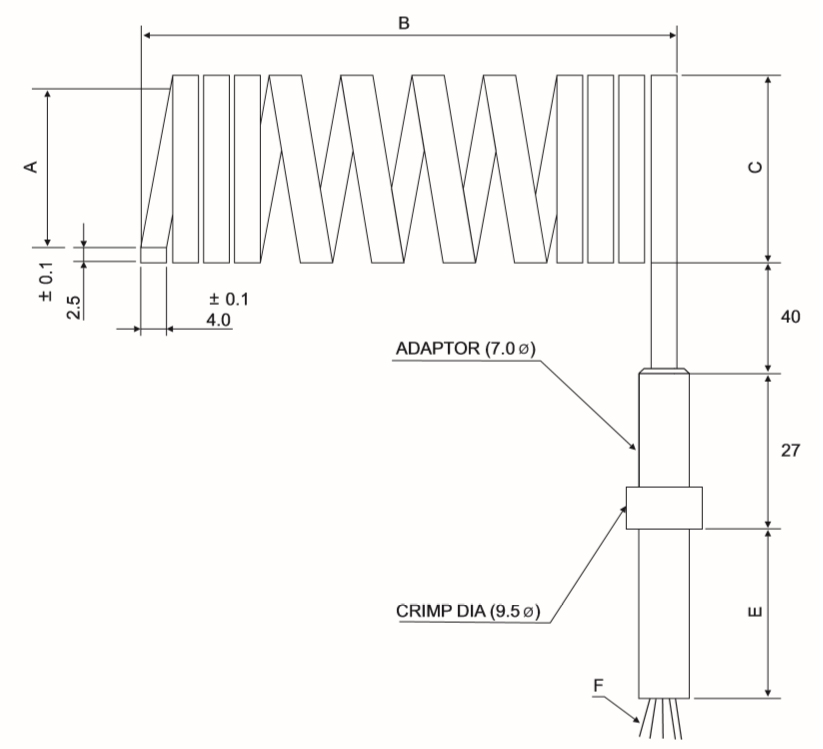

| DIMENSIONAl DATA |
SPECS |
TOlERANCE |
| ID |
A |
|
- 0.4
- 0.2 |
| LENGTH |
B |
|
± 1 mm |
| OD |
C |
|
|
| COLD LENGTH |
D |
|
± 5 mm |
| CABLE LENGTH |
E |
|
± 25 mm |
| WATTS |
W |
|
± 10 % |
| VOLTS |
V |
|
|
2 POWER CABLE
2 THERMOCOUPLE
1 GROUND (EARTHING) |
F |
|
|
